TUBE MILL FORMING SECTION

Production line for steel welded tubes from 30 mm to 127 mm O.D. complete with cassette system for quick roll change.

Production line for steel welded tubes from 30 mm to 127 mm O.D. complete with cassette system for quick roll change.

FOTO-2
Production line for steel welded tubes from 35 mm to 130 mm O.D. complete with cassette system for quick roll change.

Production line for steel welded tubes from 35 mm to 130 mm O.D. complete with cassette system for quick roll change.

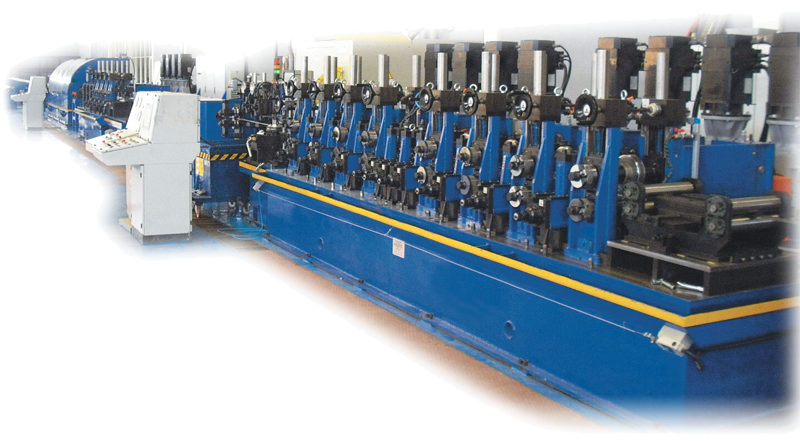

Complete line for production of High precision steel welded tubes from 12,7 mm up to 50,8 mm O.D.

Complete line for production of High precision steel welded tubes from 12,7 mm up to 50,8 mm O.D.

FOTO-5
Complete tube mill for carbon steel tubes production from 35 mm up to 130 mm O.D.

Complete tube mill for carbon steel tubes production from 35 mm up to 130 mm O.D.

FOTO-7
Complete tube mill for production of carbon steel tubes from 60 mm up to 220 mm O.D.

Complete tube mill for production of carbon steel tubes from 60 mm up to 220 mm O.D.

FOTO-1
FOTO-2

High precision forming stands with roll-shaft coupling by shaft mechanical expansion, which guarantees extreme accuracy in the tube diameter.

Top roll adjusting system by electrical motor and digital display.

Top roll adjusting system by electrical motor and digital display.

Top roll centring system.

Top roll centring system.

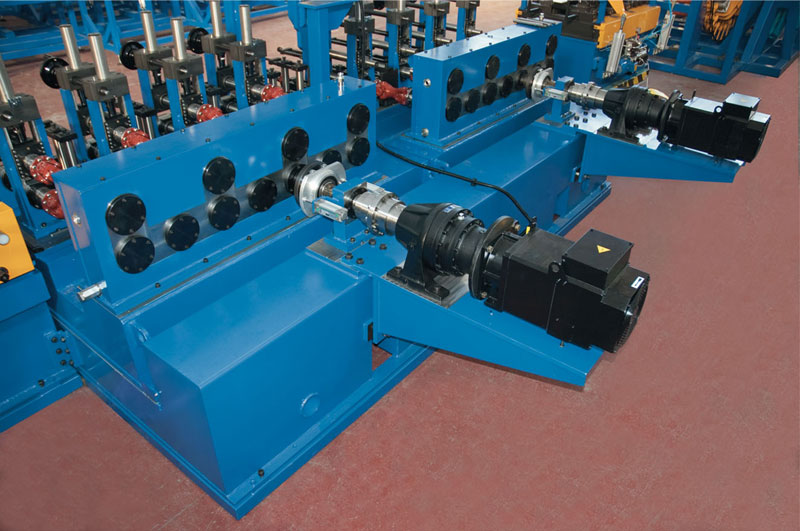

Olimpia 80 offer possibility of choice between TRADITIONAL STANDARD DRIVES, composed by two motors in the forming group and one motor in the sizing group, or INDIVIDUAL DRIVES with a single motor for each driven stand, both in the forming and in the sizing group, allowing an elevated control of the tube at high production speeds.

mot-1
mot-2
FOTO-6
mot-3
mot-4
mot-5
