COMPLETE LINES FOR TIG WELDED TUBES

The TIG welding system (Tungsten Inert Gas) is mainly indicated for the production of high quality tubes.

Olimpia 80 is capable to offer full solutions supplying complete lines which are suitable to give a final finished product wich meets the most stringent standards.

Our TIG mills can produce tubes in:

  • Stainless steel
  • Duplex and Super Duplex
  • Special alloys
  • Titanium
  • Copper
  • Aluminum
  • Other non ferrous metals

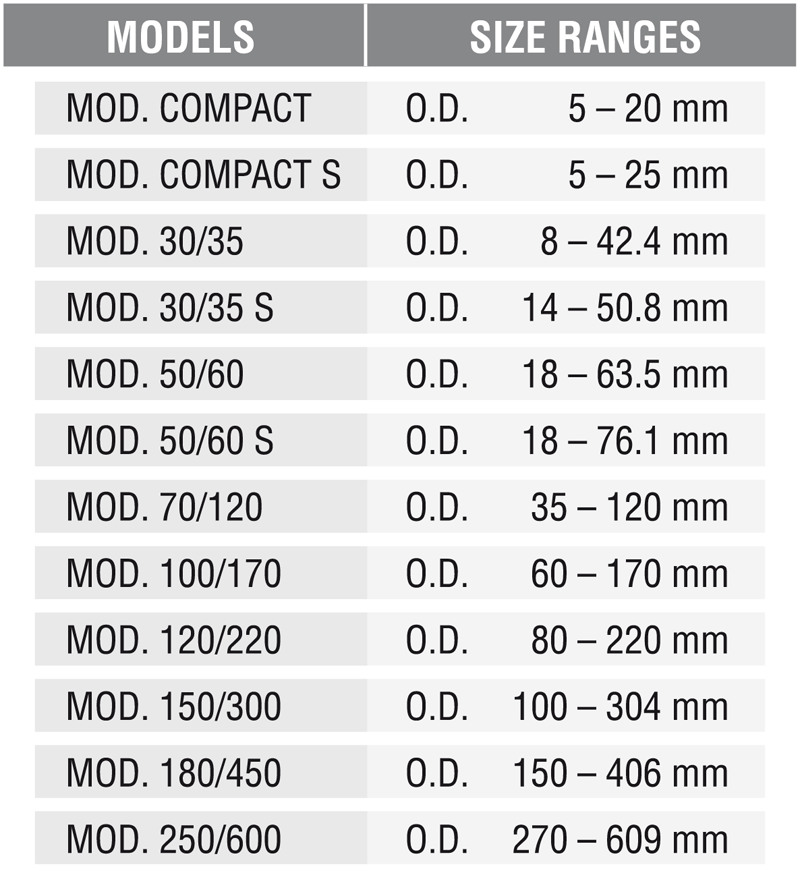

tabella-tig
LINEA-TIG

Complete mill, Mod. 50/60S, for production of stainless steel Tig welded tubes from 18 to 76 mm O.D.

linea-tig-2
DISEGNO-LINEA

Airtight WELD BOXES for welding process under controlled atmosphere, with option of using both weld rolls or weld shoes.

FOTO 1
FOTO-PART
linea-1
Tube welding line for production of stainless steel tubes, complete with equipment for INSIDE AND OUTSIDE WELD BEAD REMOVAL.

Tube welding line for production of stainless steel tubes, complete with equipment for INSIDE AND OUTSIDE WELD BEAD REMOVAL.

linea-1d
linea-1d
[

Weld box complete with Tricathode and Plasma welding system.

box2
box-3
box-4

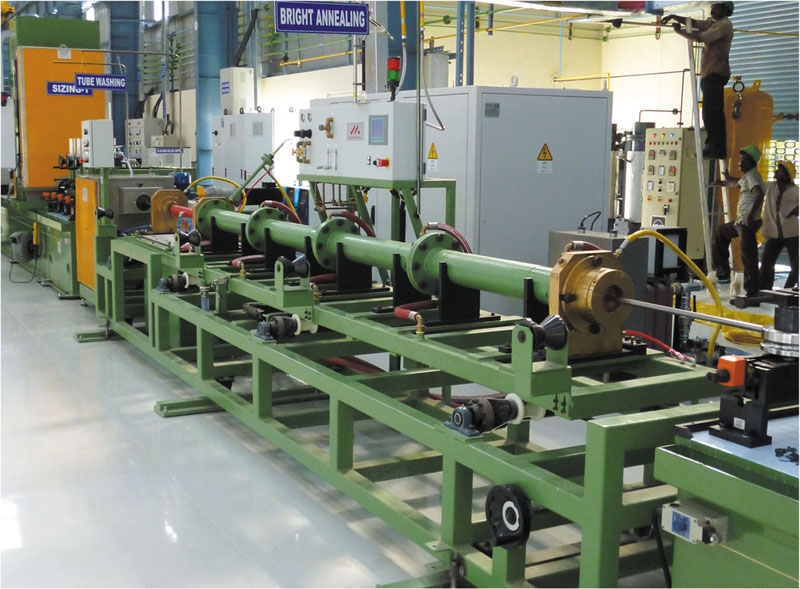

Olimpia 80 can install on its own lines IN-LINE BRIGHT ANNEALING MACHINES, covering size ranges from 6 mm to 114 mm O.D.

Moreover the company offers complete solutions which include tube washing units and pinch rolls for the tube feeding.

FOTO-1
FOTO 2

Olimpia 80 offers various models of TUBE FLYING CUTTING MACHINES, working by cold disk saw or by band saw.
On request the cut off can be completed by in line AUTOMATIC DEBURRING SYSTEM for the tube ends facing.

LINEA-1

24” STAINLESS STEEL TUBE MILL.

linea-406-mm-pag-19

16” STAINLESS STEEL TUBE MILL.

FOTO-3
paritcolare-pag-19

In-line dull annealing for stainless steel tubes.

FOTO-5

Double blade flying cut off.


TITANIO TUBE MILLS

Olimpia 80 can propone a complete range of tube mills specially engineered for the production of TITANIUM tubes by the following main characteristics:

Material: Titanium Gr1 and Gr2 - Titanium alloys

Welding system: TIG

Max tubes length on request.

The tube production lines produce primarily for the following sectors:

  • nuclear power industry
  • aeronautical industry
  • water desalination
  • heat exchanger
  • car industry
  • chemical and petrochemical

The lines are characterized by all the necessary components for the correct production of the tube, including non-destructive tests and heat treatment line.

FOTO-LINEA

Complete mill, mod. 50/60, for titanium tube production, OD from 12 to 60 mm, with TIG welding system.

FOTO-1
FOTO-2

Complete mill, mod. 70/120, for titanium tube production, OD from 38 to 114 mm, with TIG welding system.

FOTO-3

These TIG tube mills, can be completed with the of-lines installations for non-destructive test (Ultrasonic, Eddy Current, Pneumatic).
